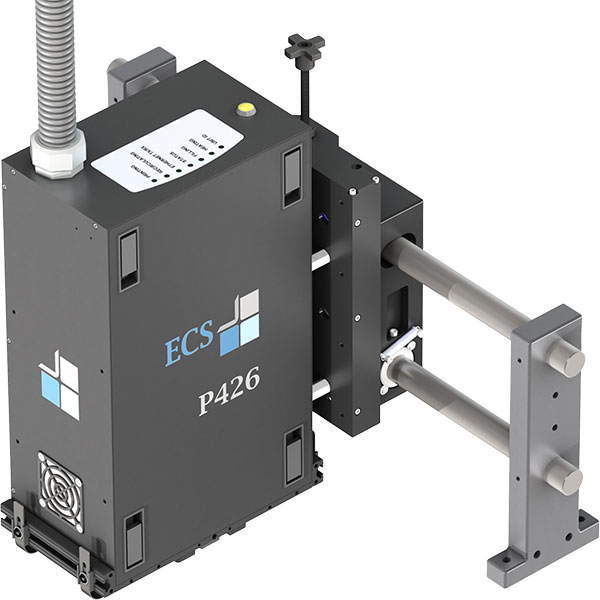

Model P426 Osprey Inkjet System
High Production Inkjet System
The ECS P400 UV inkjet system provides high speed and stitch-less print heads to offer both high speed production and graphics capability at operating speeds exceeding 20,000 pieces per hour.
High performance at low cost.
The P400 UV inkjet system allows high production speeds with the benefit of low-cost inks and durable low-cost replacement parts.
Download BrochureContact us for pricing and information >
Enhance your product offerings with high quality graphics, logos, store locator maps, barcodes and more.
| Head Configurations | |
|---|---|
| 2.6″ | Up to 10 heads from 1 PC |
| Barcodes Supported | |
|---|---|
| Data Matric | Coda bar / NW-7 |
| QR Code | Code 93 |
| PDF417 | 3 of 5 |
| 3 of 9 | UPC A |
| 2 of 5 | UPC E |
| 128 | EAN-13 |
| GS1 Databar | EAN-8 |
| USPS IBM | USPS IMpb |
| Specifications | ||
|---|---|---|
| Osprey P426 72 | Drop Size 72pl | |
| Resolution | IPS | FPM |
| 400 x 600 | 33 | 165 |
| 400 x 400 | 50 | 250 |
| 400 x 300 | 67 | 335 |
| 400 x 200 | 100 | 500 |
| 400 x 150 | 133 | 666 |
| Drop Size | 72pl @20Khz* | |
| *Industry Leading 3X drop size | ||
High Speed
- 400 x 400 DPI at 375 feet per min.
- 400 x 300 DPI at 500 feet per min.
- 20,000 + pieces/hour
Low Operating Cost
- Low ink cost
- Low maintenance cost
- Uses low cost inks
Wide Solid Print Area
- Solid 2.5″ Print Head
- Print large areas without stitch marks
- One PC can drive up to 10 heads
Ease of Use
- Hands-free ink management system
- Stitch-free 2.5″ wide print heads
Ability to print on:
- Aqueous Stocks
- Coated Stocks
E Series Controller
ECS offers complete intelligent bindery control systems for selective pocket feeding, variable inkjet addressing and camera verification on catalogs, magazines and publications.
- Selective pocket feeding control
- Multi-station in-line inkjet imaging and bindery systems
- Camera verification systems
- Real-time reporting and data mining performance statistics
Compatibility
ECS Controllers work with all major new and used bindery line systems including:
- Muller Martini
- Goss
- Heidelberg
- Osako
Create any combination of matching and printing with seamless connection to the SV1000™ Camera System
